Sandvik Coromant

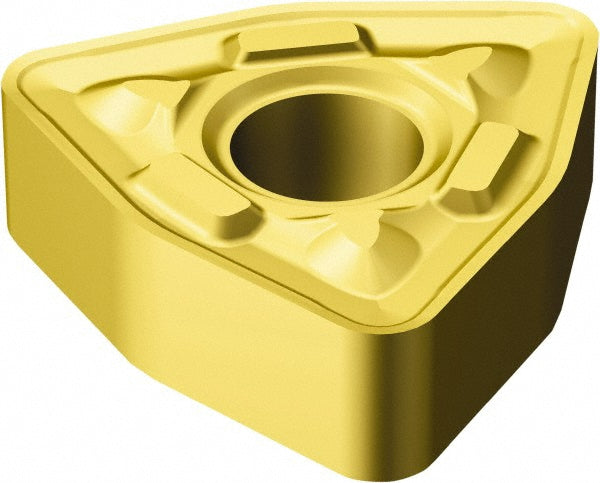

WNMG 08 04 12-MR 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5756722
MFR# 5756722ISO/ANSI# WNMG 08 04 12-MR 2035Series T-Max P
$20.03List $25.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade2035
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5756722 is a WNMG 08 04 12-MR 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMR
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.2948
Insert materialCarbide
Insert shapeTrigon
Insert size code0804
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG 08 04 12-MR 2035
Length range0.0000 - 0.3000
Manufacturer grade2035
Number of cutting edges6
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
