Sandvik Coromant
WPMT 04 02 04-PF 5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5756860
MFR# 5756860ISO/ANSI# WPMT 04 02 04-PF 5015Series CoroTurn 111
$15.62List $20.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTrigon
Grade5015
MaterialCermet
Description

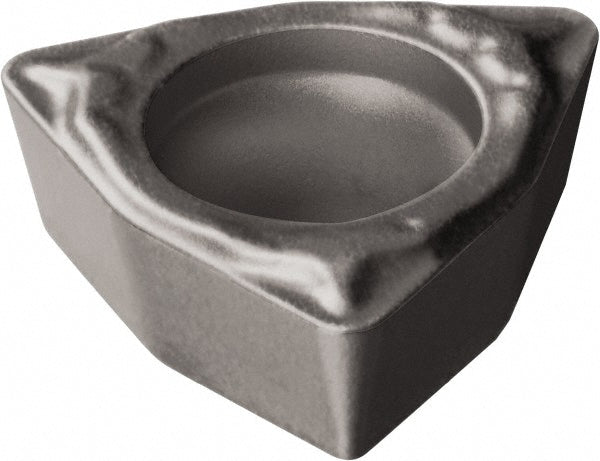

The Sandvik Coromant 5756860 is a WPMT 04 02 04-PF 5015 cermet indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerPF
Clearance codeP
Coating processUncoated
Corner radius in1/64
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.1709
Insert materialCermet
Insert shapeTrigon
Insert size code21.52
Insert styleWPMT
Insert thickness in3/32
Iso codeWPMT 04 02 04-PF 5015
Length range0.0000 - 0.3000
Manufacturers catalog number5756860
Manufacturer grade5015
Maximum depth of cut0.1551
Number of cutting edges3
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
