Sandvik Coromant

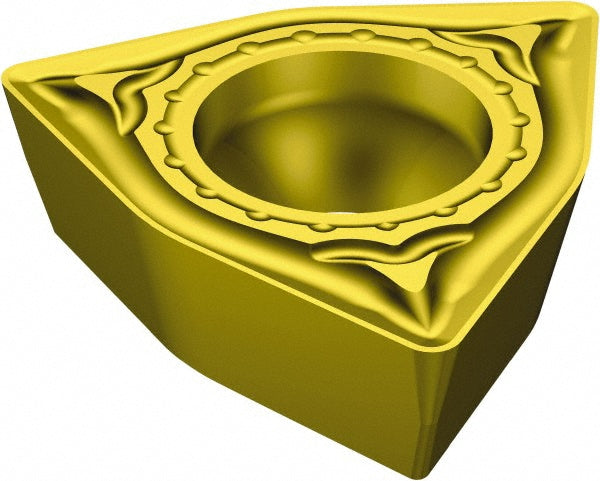

WPMT 04 02 04-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5756904
MFR# 5756904ISO/ANSI# WPMT 04 02 04-MM 2025Series CoroTurn 111
$16.51List $21.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTrigon
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5756904 is a WPMT 04 02 04-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeP
Coating finishTiCN
Corner radius in1/64
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.1709
Insert materialCarbide
Insert shapeTrigon
Insert size code21.51
Insert styleWPMT
Insert thickness in3/32
Iso codeWPMT 04 02 04-MM 2025
Length range0.0000 - 0.3000
Manufacturers catalog number5756904
Manufacturer grade2025
Maximum depth of cut0.1551
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle11
Tolerance codeM
Wiper edgeNo
