Sandvik Coromant

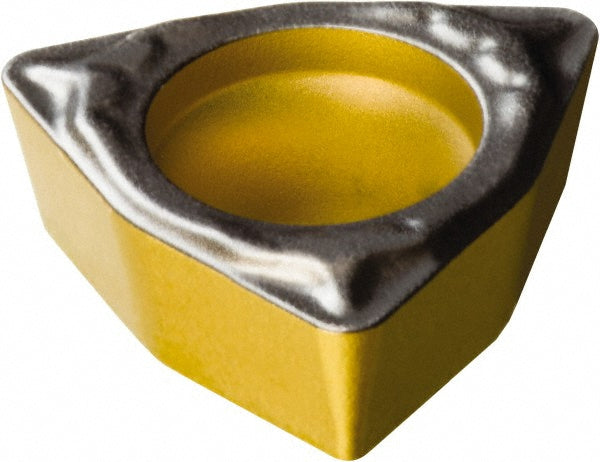

WPMT020102PF1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5757141
MFR# 5757141ISO/ANSI# WPMT020102PF1515Series CoroTurn 111
$20.01List $25.22
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTrigon
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5757141 is a WPMT020102PF1515 carbide indexable insert, grade 1515, TiCN coated.
Specifications
ChipbreakerT
Coating finishTiCN
Coating processMTCVD
Corner radius0.0079
Hole diameter0.0866
Included angle80
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTrigon
Insert size code1.210
Insert styleWPMT
Iso codeWPMT020102PF1515
Length0.1028
Manufacturers catalog number5757141
Manufacturer grade1515
Maximum depth of cut0.0949
Relief angle11
