Sandvik Coromant

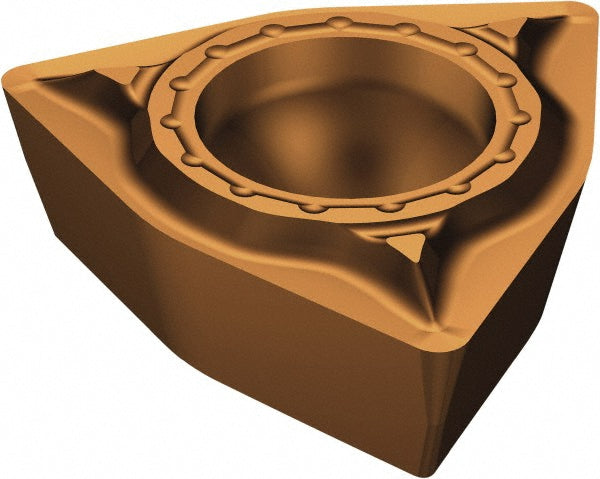

WPMT 02 01 04-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5757199
MFR# 5757199ISO/ANSI# WPMT 02 01 04-MF 1125Series CoroTurn 111
$14.44List $18.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/32
ShapeTrigon
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5757199 is a WPMT 02 01 04-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.
Specifications
ChipbreakerMF
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.0866
Included angle80
Inscribed circle in5/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeTrigon
Insert size code1.211
Insert styleWPMT
Iso codeWPMT 02 01 04-MF 1125
Length0.0869
Manufacturer grade1125
Number of cutting edges3
Primary workpiece materialStainless Steel
Relief angle11
Secondary workpiece materialSuperalloy; Titanium
