Sandvik Coromant

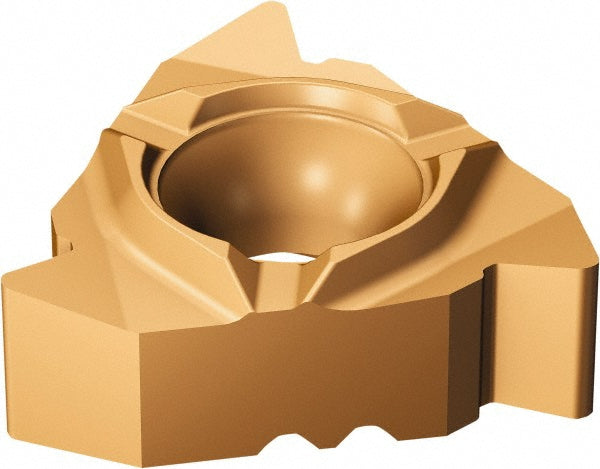

266LL16MM01A200M1125 Solid Carbide Insert, Grade 1125 - Sandvik Coromant 5757872
MFR# 5757872ISO/ANSI# 266LL16MM01A200M1125Series CoroThread 266
$38.83List $49.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
Description
The Sandvik Coromant 5757872 is a 266LL16MM01A200M1125 solid carbide indexable insert, grade 1125.
Specifications
ChipbreakerA
Coating processPVD
Included angle60
Insert handLeft Hand
Insert materialSolid Carbide
Insert size16
Insert style266
Internal pitch2.00 mm
Iso code266LL16MM01A200M1125
Manufacturer grade1125
Thickness0.1563
Thread standardMetric 60 Degree
Thread typeInternal
