Sandvik Coromant

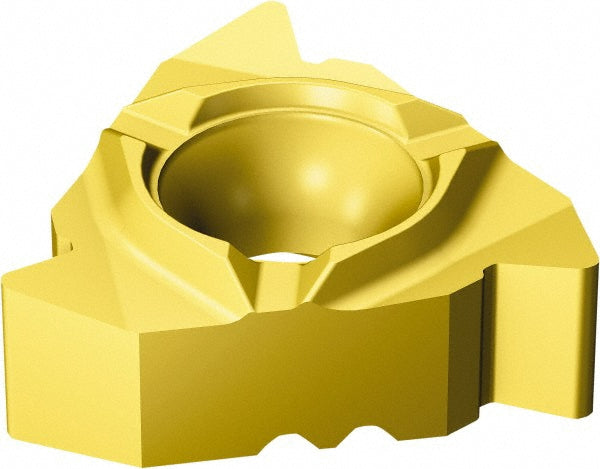

1/2" IC Solid Carbide Insert, Grade 1020, TiN - Sandvik Coromant 5758017
MFR# 5758017Cat# 266RG-22VM01A001M 1020Series CoroThread 266
$59.19List $75.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade1020
MaterialSolid Carbide
CoatingTiN
Description
The Sandvik Coromant 5758017 is a solid carbide indexable insert, grade 1020, TiN coated.
Specifications
ChipbreakerA
Coating finishTiN
Coating processPVD
Corner radius0.0189
Hole diameter0.2244
Included angle60
Inscribed circle in1/2
Insert handRight Hand
Insert materialSolid Carbide
Insert size code22
Insert style266
Manufacturers catalog number266RG-22VM01A001M 1020
Manufacturer grade1020
Number of teeth per side1
Pitch (mm)3.50-6.00
Thickness0.2190
Threads per inch4-7
Thread standard60 Deg V
Thread typeExternal
