Sandvik Coromant

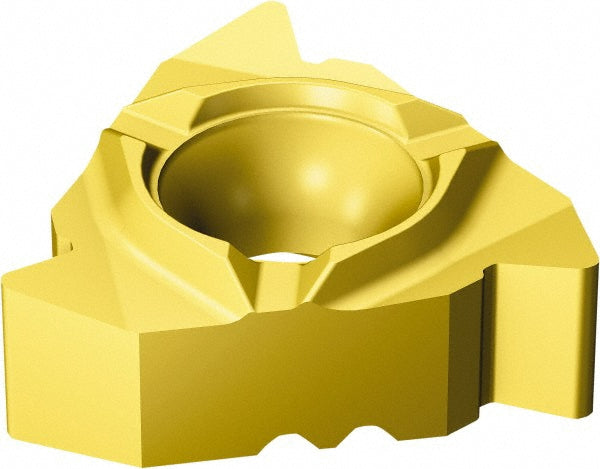

1/2" IC Solid Carbide Insert, Grade 1020, TiN - Sandvik Coromant 5758029
MFR# 5758029Cat# 266RL-22NT02A115E 1020Series CoroThread 266
$89.26List $114.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade1020
MaterialSolid Carbide
CoatingTiN
Description
The Sandvik Coromant 5758029 is a solid carbide indexable insert, grade 1020, TiN coated.
Specifications
ChipbreakerA
Coating finishTiN
Coating processPVD
Hole diameter0.2244
Included angle60
Inscribed circle in1/2
Insert handRight Hand
Insert materialSolid Carbide
Insert size code22
Insert style266
Manufacturers catalog number266RL-22NT02A115E 1020
Manufacturer grade1020
Number of teeth per side2
Thickness0.2190
Threads per inch11.5
Thread standardNPT
Thread typeInternal
