Sandvik Coromant

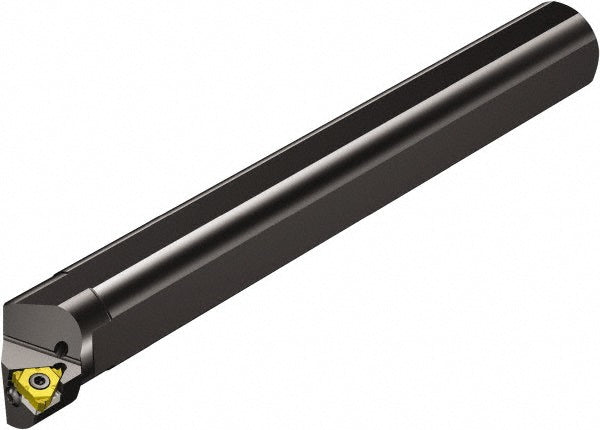

Indexable Threading Toolholders - Sandvik Coromant 5758091
MFR# 5758091Series CoroThread 266
$388.34List $412.56
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5758091 indexable threading toolholders. Series CoroThread 266.
Specifications
Back of bar to cutting edge in12
Center to cutting edge0.6690
Coolant throughYes
Hand of holderRight Hand
Head length in3
Insert compatibility266RL-16
Insert holding methodScrew
Insert inscribed circle in3/8
Maximum depth of cut3.0000
Minimum bore diameter1.2600
Neck diameter1.0000
Overall length in12
Shank height0.9060
Shank length in12
Shank width diameter in1
Thread typeInternal; External
Toolholder materialSteel
Toolholder style266RKF
