Sandvik Coromant

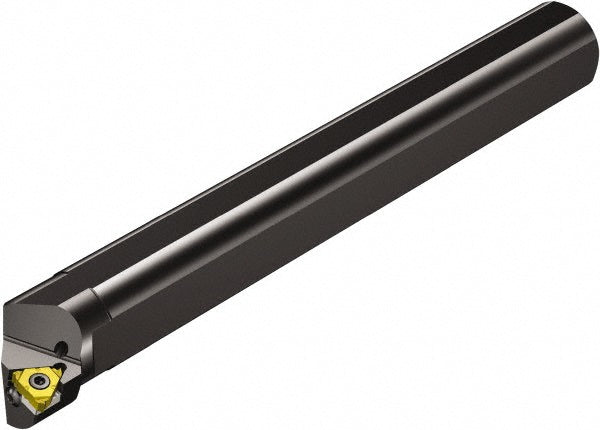

Indexable Threading Toolholders - Sandvik Coromant 5758097
MFR# 5758097Series CoroThread 266
$453.40List $481.68
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5758097 indexable threading toolholders. Series CoroThread 266.
Specifications
Back of bar to cutting edge in14
Center to cutting edge0.8660
Coolant throughYes
Hand of holderRight Hand
Head length in3-3/4
Insert compatibility266RL to 16
Insert holding methodScrew
Insert inscribed circle in3/8
Maximum depth of cut3.7500
Minimum bore diameter1.5800
Neck diameter1.2500
Overall length in14
Shank height1.1810
Shank length in14
Shank width diameter in1-1/4
Thread typeInternal; External
Toolholder materialSteel
Toolholder style266RKF
