Sandvik Coromant

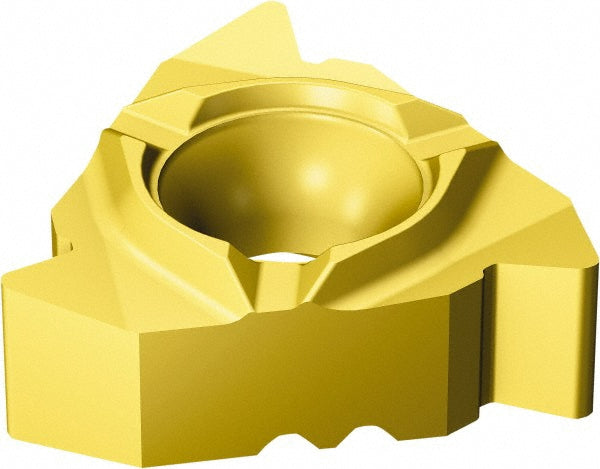

1/2" IC Solid Carbide Insert, Grade 1020, TiN - Sandvik Coromant 5758235
MFR# 5758235Cat# 266RG-22UN01A070M 1020Series CoroThread 266
$59.19List $75.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
Grade1020
MaterialSolid Carbide
CoatingTiN
Description
The Sandvik Coromant 5758235 is a solid carbide indexable insert, grade 1020, TiN coated.
Specifications
ChipbreakerA
Coating finishTiN
Coating processPVD
Hole diameter0.2244
Included angle60
Inscribed circle in1/2
Insert handRight Hand
Insert materialSolid Carbide
Insert size code22
Insert style266
Manufacturers catalog number266RG-22UN01A070M 1020
Manufacturer grade1020
Number of teeth per side1
Thickness0.2190
Threads per inch7
Thread standardUN
Thread typeExternal
