Sandvik Coromant

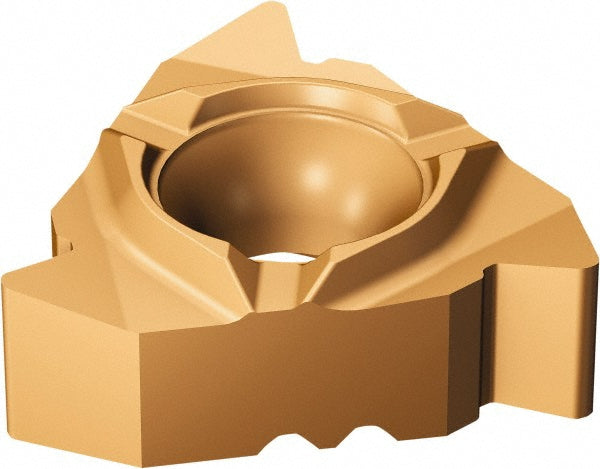

266RG22RD01A080E1125 Solid Carbide Insert, Grade 1125 - Sandvik Coromant 5758237
MFR# 5758237ISO/ANSI# 266RG22RD01A080E1125Series CoroThread 266
$77.72List $99.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
Description
The Sandvik Coromant 5758237 is a 266RG22RD01A080E1125 solid carbide indexable insert, grade 1125.
Specifications
ChipbreakerA
Coating processPVD
External pitch8 TPI
Included angle60
Insert handRight Hand
Insert materialSolid Carbide
Insert size22
Insert style266
Iso code266RG22RD01A080E1125
Manufacturer grade1125
Thickness0.2189
Thread standardAPI Round
Thread typeExternal
