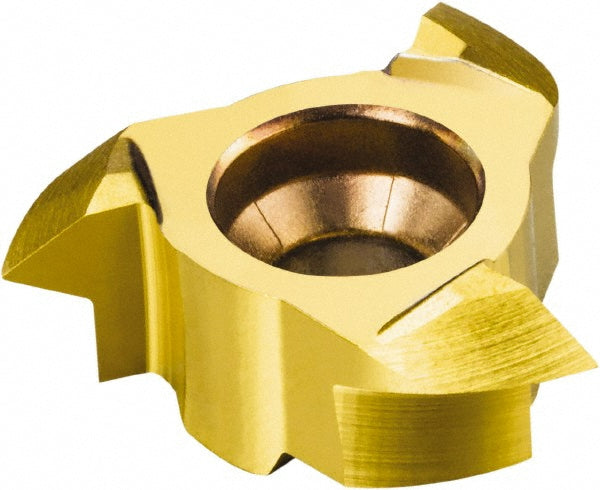

Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 5758644

Sandvik Coromant

Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 5758644

MFR# 5758644Series 327

$100.21List $128.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
Grade1025
CoatingTiAlN

Description

The Sandvik Coromant 5758644 is a carbide indexable insert, grade 1025, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0000
Cutting diameter0.6968
Cutting width0.6968
Functional length0.1654
Helix angle0
Included angle degree60
Insert handRight Hand
Insert sizeR09-18 250VM
Lead angle90
Length of cut0.1023
Manufacturers catalog number5758644
Manufacturer grade1025
Material gradeP10; P20; P30; M10; M20; S10; S20; N10; N20
Maximum depth of cut0.1023
Milling tip full description327R09-18 250VM-TH 1025
Milling tip style327
Milling tip typeThread
Number of flutes3
Overall length0.1654
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
StandardsANSI
Tool materialCarbide
