Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 5758678

Sandvik Coromant

Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 5758678

MFR# 5758678Series 327

$95.16List $122.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
Grade1025
CoatingTiAlN

Description

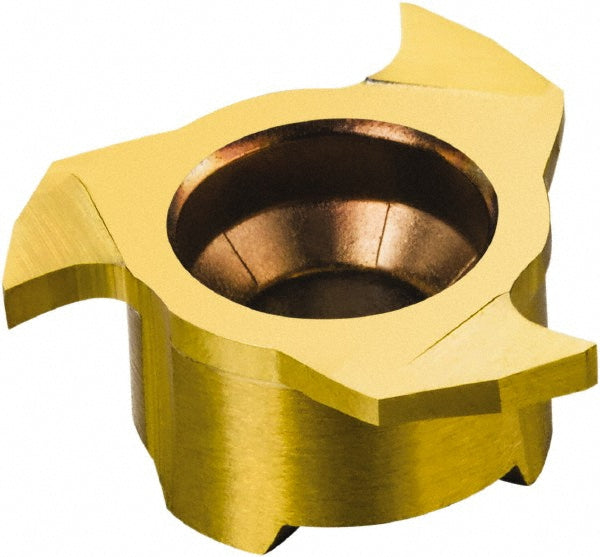

The Sandvik Coromant 5758678 is a carbide indexable insert, grade 1025, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium.

Specifications

Chamfer angle0.000
ChipbreakerCommon
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0078
Cutting diameter1.0905
Cutting width1.0905
Functional length0.2559
Helix angle0
Included angle degree90
Insert handRight Hand
Insert sizeR14-28 40002
Lead angle90
Length of cut0.2559
Manufacturers catalog number5758678
Manufacturer grade1025
Material gradeP10; P20; P30; M10; M20; S10; S20; N10; N20
Maximum depth of cut0.2559
Milling tip full description327R14-28 40002-GM 1025
Milling tip style327
Milling tip typeGroove
Number of flutes3
Overall length0.2559
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
StandardsANSI
Tool materialCarbide
