345R-1305M-KH 3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5759270

Sandvik Coromant

345R-1305M-KH 3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5759270

MFR# 5759270ISO/ANSI# 345R-1305M-KH 3040Cat# 345R-1305M-KH 3040Series 345

$29.35List $37.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade3040
MaterialSolid Carbide
CoatingTiCN

Description

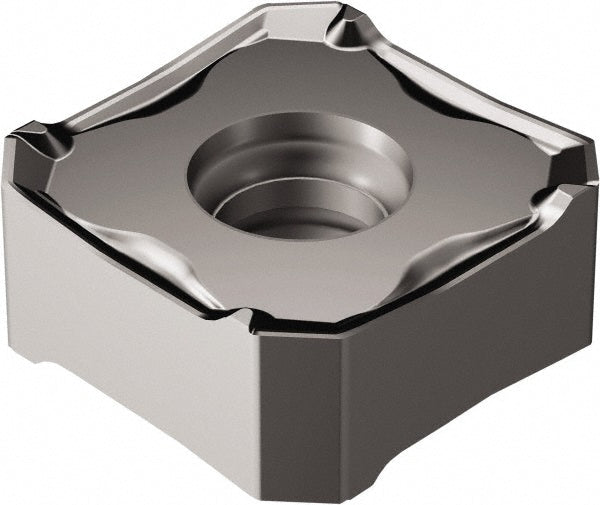

The Sandvik Coromant 5759270 is a 345R-1305M-KH 3040 solid carbide indexable insert, grade 3040, TiCN coated. Suited for steel, cast iron, hard material.

Specifications

Ansi code345R-1305M-KH 3040
Chip breakerKH
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibility345
Cutting edge styleCorner Rounded
Hole diameter0.1890
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert style345
Iso code345R-1305M-KH 3040
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog number345R-1305M-KH 3040
Manufacturer grade3040
Material applicationSteel; Cast Iron; Hard Material
Material gradeP20; K30; H25
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron; Hard Material
RakeNegative
Rake angle24
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1988
Thickness range0.1850 to 0.2000
Width0.5118
