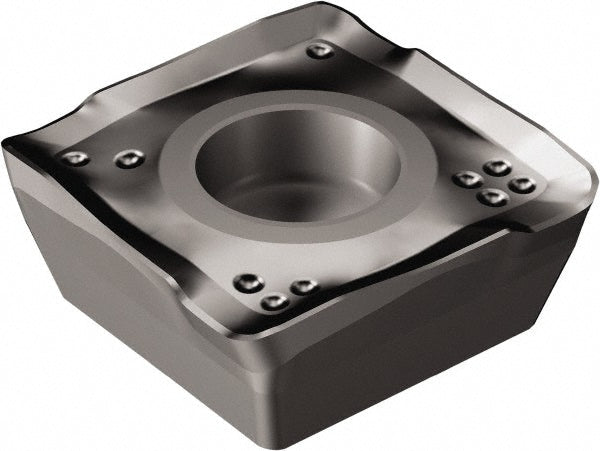

490R-08T308M-PM 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5762160

Sandvik Coromant

490R-08T308M-PM 1010 Solid Carbide Insert, Grade 1010, TiAlN - Sandvik Coromant 5762160

MFR# 5762160ISO/ANSI# 490R-08T308M-PM 1010Cat# 490R-08T308M-PM 1010Series 490

$24.71List $31.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade1010
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5762160 is a 490R-08T308M-PM 1010 solid carbide indexable insert, grade 1010, TiAlN coated. Suited for cast iron, hard material.

Specifications

Ansi code490R-08T308M-PM 1010
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility490
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.3346
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size08
Insert size code08T308
Insert style490
Iso code490R-08T308M-PM 1010
Length0.3346
Length range0.3200 to 0.4000
Manufacturers catalog number490R-08T308M-PM 1010
Manufacturer grade1010
Material applicationCast Iron; Hard Material
Material gradeP10
Maximum depth of cut0.2165
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Hard Material
RakePositive
Rake angle26
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1299
Thickness range0.1250 to 0.1500
Width0.3346
