Sandvik Coromant

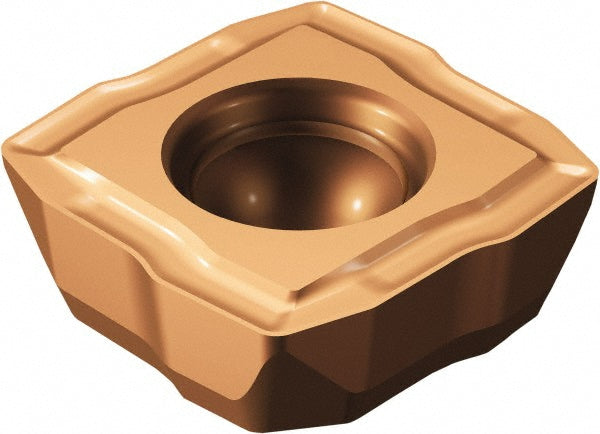

0.2244" IC Solid Carbide Insert, Grade 1044, TiAlN - Sandvik Coromant 5765613
MFR# 5765613
$24.24List $30.55
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1044
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5765613 is a solid carbide indexable insert, grade 1044, TiAlN coated.
Specifications
ChipbreakerLM
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Hole diameter0.0984
Inscribed circle0.2244
Insert materialSolid Carbide
Insert size03C
Insert style880
Length0.2244
Manufacturer grade1044
ShapeSquare
Thickness0.1024
Width0.2244
