Sandvik Coromant
DCGW11T304S01530F 7015 Carbide Insert, Grade 7015, TiN - Sandvik Coromant 5767783
MFR# 5767783ISO/ANSI# DCGW11T304S01530F 7015
$97.69List $123.12
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade7015
MaterialCarbide
CoatingTiN
Description

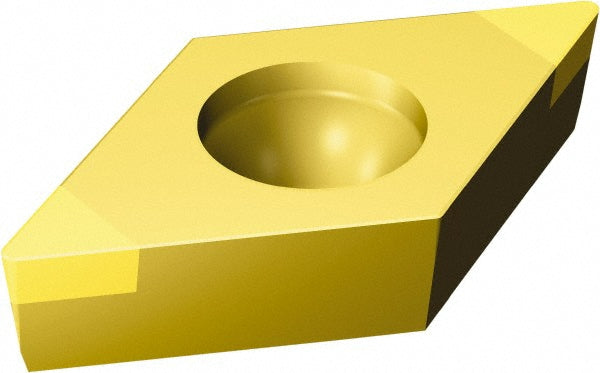

The Sandvik Coromant 5767783 is a DCGW11T304S01530F 7015 carbide indexable insert, grade 7015, TiN coated.
Specifications
Chip breakerW
Clearance codeC
Coating finishTiN
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.1142
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCGW
Insert thickness in5/32
Iso codeDCGW11T304S01530F 7015
Length range0.0000 - 0.3000
Manufacturer grade7015
Relief angle7
Tolerance codeG
