Sandvik Coromant

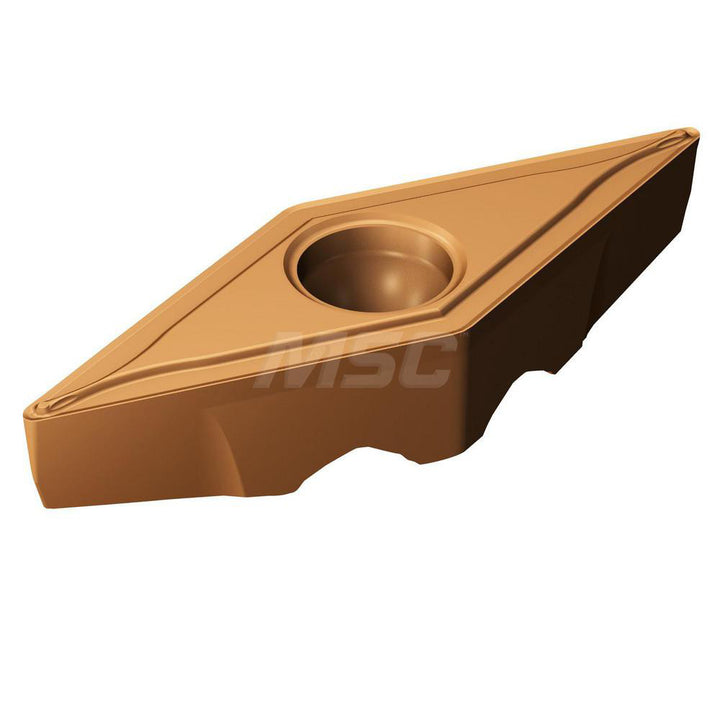

TR-VB1302-F 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5781812
MFR# 5781812ISO/ANSI# TR-VB1302-F 1125Series CoroTurn TR
$30.17List $38.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5781812 is a TR-VB1302-F 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerF
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1339
Inscribed circle0.3150
Insert handNeutral
Insert holding methodScrew
Insert length0.5039
Insert materialCarbide
Insert shapeDiamond
Insert size code1302
Insert styleTRVB
Insert thickness0.1782
Iso codeTR-VB1302-F 1125
Length range0.5000 - 0.6000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle5
Secondary workpiece materialStainless Steel
Wiper edgeNo
