Sandvik Coromant

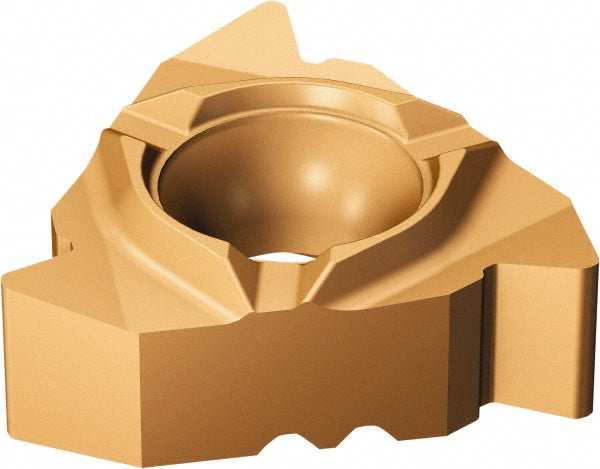

3/8" IC Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5781928
MFR# 5781928Cat# 266RG-16UN01C160M 1125Series CoroThread 266
$39.08List $50.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5781928 is a solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
ChipbreakerC
Coating finishTiAlN
Coating processPVD
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style266
Manufacturers catalog number266RG-16UN01C160M 1125
Manufacturer grade1125
Number of teeth per side1
Thickness in5/32
Threads per inch16
Thread standardUN
Thread typeExternal
