Sandvik Coromant

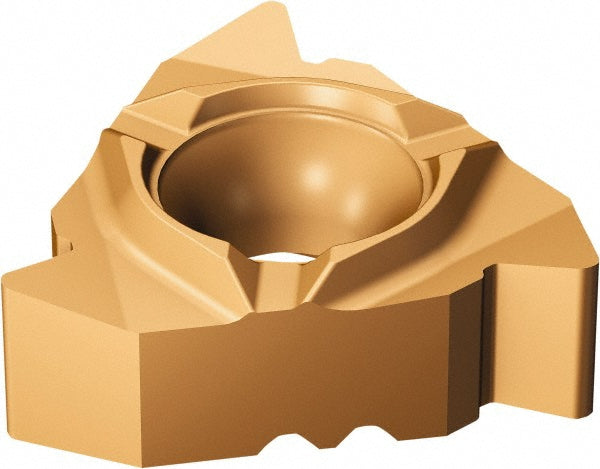

266RL16UN01A090M1125 Solid Carbide Insert, Grade 1125 - Sandvik Coromant 5782016
MFR# 5782016ISO/ANSI# 266RL16UN01A090M1125Series CoroThread 266
$47.31List $59.62
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
Description
The Sandvik Coromant 5782016 is a 266RL16UN01A090M1125 solid carbide indexable insert, grade 1125.
Specifications
ChipbreakerA
Coating processPVD
Included angle60
Insert handRight Hand
Insert materialSolid Carbide
Insert size16
Insert style266
Internal pitch9 TPI
Iso code266RL16UN01A090M1125
Manufacturer grade1125
Thickness0.1563
Thread standardUN
Thread typeInternal
