Sandvik Coromant

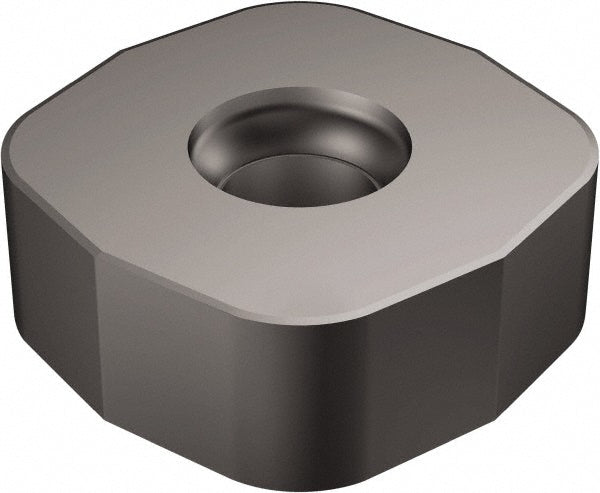

N365-1505ZNE 6190 Silicon Nitride Insert, Grade 6190 - Sandvik Coromant 5782733
MFR# 5782733ISO/ANSI# N365-1505ZNE 6190Cat# N365-1505ZNE 6190Series N365
$92.55List $116.64
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
Grade6190
MaterialSilicon Nitride
Description
The Sandvik Coromant 5782733 is a N365-1505ZNE 6190 silicon nitride indexable insert, grade 6190. Suited for cast iron, hard material.
Specifications
Ansi codeN365-1505ZNE 6190
Chip breakerFlat Top
Coating processUncoated
Corner radius0.1417
Cutter series compatibilityL365; R365
Cutting edge styleCorner Rounded
Hole diameter0.1811
Included angle degree90
Inscribed circle0.5906
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSilicon Nitride
Insert shapeSquare
Insert size15
Insert size code1505
Insert styleN365
Iso codeN365-1505ZNE 6190
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberN365-1505ZNE 6190
Manufacturer grade6190
Material applicationCast Iron; Hard Material
Material gradeK05; H10
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Rake angle0
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2228
Thickness range0.2200 to 0.2350
Width0.5906
