Sandvik Coromant

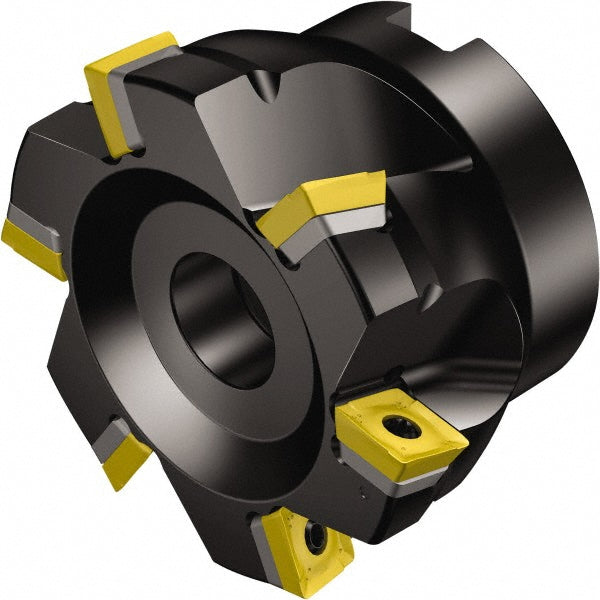

Indexable Milling Cutters - Sandvik Coromant 5844007
MFR# 5844007Series CoroMill 490
$769.03List $817.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Sandvik Coromant 5844007 indexable milling cutters. Series CoroMill 490.
Specifications
Arbor hole diameter in3/4
Compatible insert size code490R-1404
Complete insert compatibility490R-1404
Coolant throughYes
Cutter styleA490
Cutting directionRight Hand
Cutting edge length0.3937
Hub diameter in3/4
Insert holding methodClamp; Screw
Keyway width0.3209
Lead angle90
Maximum body diameter1.9370
Maximum cutting diameter in2
Maximum depth of cut0.3937
Number of cutter inserts4
Number of flutes4
Overall height1.5750
Pitch typeClose
RakePositive
Toolholder materialSteel
