Sandvik Coromant

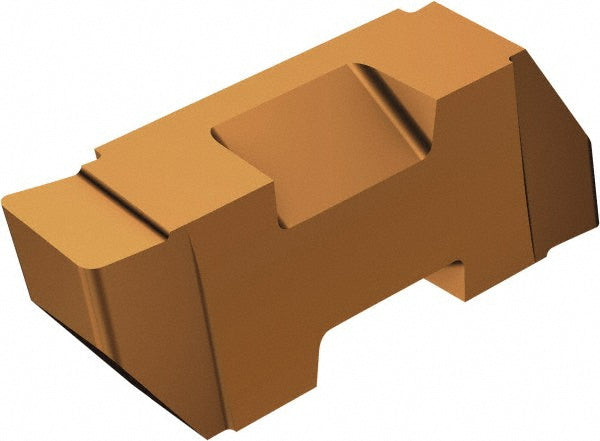

TLGP-2125R 1125 Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 5846585
MFR# 5846585ISO/ANSI# TLGP-2125R 1125Cat# TLGP-2125R 1125Series Top Lok
$35.52List $45.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiCrAlN
Description
The Sandvik Coromant 5846585 is a TLGP-2125R 1125 solid carbide indexable insert, grade 1125, TiCrAlN coated.
Specifications
Coating finishTiCrAlN
Coating processPVD
Corner radius0.0075
Cutting height0.2190
Cutting width in1/8
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size2
Insert size2
Insert styleTLGP
Insert thickness0.2190
Iso codeTLGP-2125R 1125
Manufacturers catalog numberTLGP-2125R 1125
Manufacturer grade1125
Maximum corner radius0.0075
Maximum depth of cut0.1100
Maximum depth of cut range0.1000 to 0.1500
Minimum corner radius0.0075
Multi use toolYes
Overall length0.3441
Overall width in1/8
RakeNeutral
Rake angle10.00
