Sandvik Coromant
TLGP-3110R 1125 Solid Carbide Insert, Grade 1125, TiCrAlN - Sandvik Coromant 5846589
MFR# 5846589ISO/ANSI# TLGP-3110R 1125Cat# TLGP-3110R 1125Series Top Lok
$42.80List $54.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiCrAlN
Description

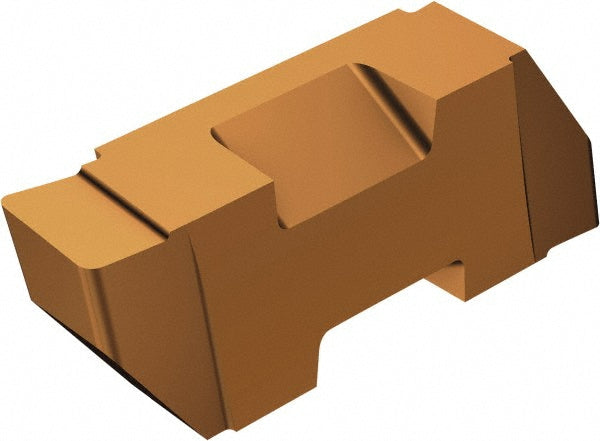

The Sandvik Coromant 5846589 is a TLGP-3110R 1125 solid carbide indexable insert, grade 1125, TiCrAlN coated.
Specifications
Coating finishTiCrAlN
Coating processPVD
Corner radius0.0125
Cutting height0.3440
Cutting width0.1100
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3
Insert styleTLGP
Insert thickness0.3440
Iso codeTLGP-3110R 1125
Manufacturers catalog numberTLGP-3110R 1125
Manufacturer grade1125
Maximum corner radius0.0125
Maximum depth of cut0.1500
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0125
Multi use toolYes
Overall length0.6339
Overall width0.1100
RakeNeutral
Rake angle10.00
