Sandvik Coromant

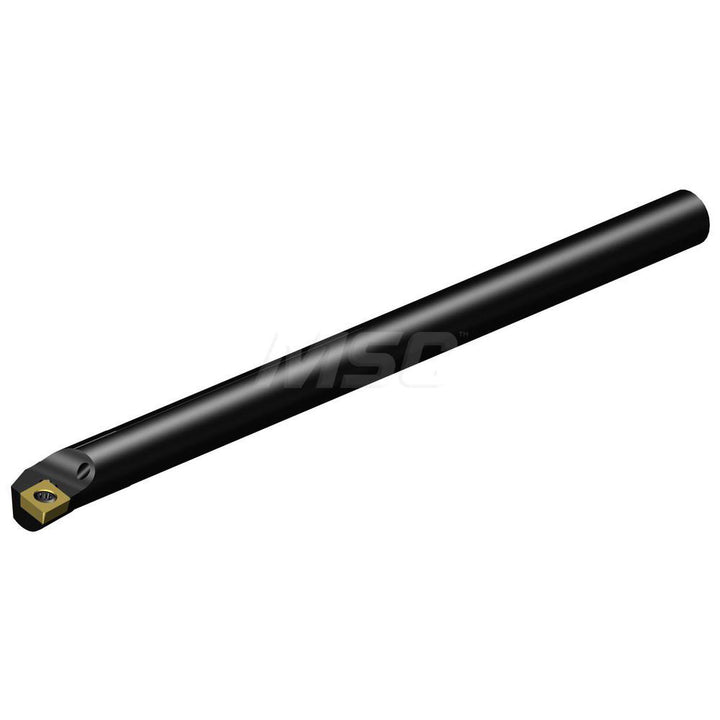

Indexable Boring - Sandvik Coromant 5853216
MFR# 5853216Cat# E06M-SCLCR 2-RSeries CoroTurn 107
$656.96List $685.80
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5853216 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge6.0000
Center to cutting edge in1/4
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityCCMT 21.51
Insert holding methodScrew Clamping
Insert inscribed circle in1/4
Insert thickness0.0750
Lead angle0.00
Manufacturers catalog numberE06M-SCLCR 2-R
Minimum bore diameter0.4803
Minimum bore diameter using diamond insert cartridge0.4803
Minimum bore diameter using triangle insert cartridge0.4803
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in3/8
Number of inserts used on toolholder1
Overall length in6
RakeNeutral
Rake angle0.00
Shank diameter in3/8
Toolholder styleE-SCLC
Tool materialSolid Carbide
