Sandvik Coromant

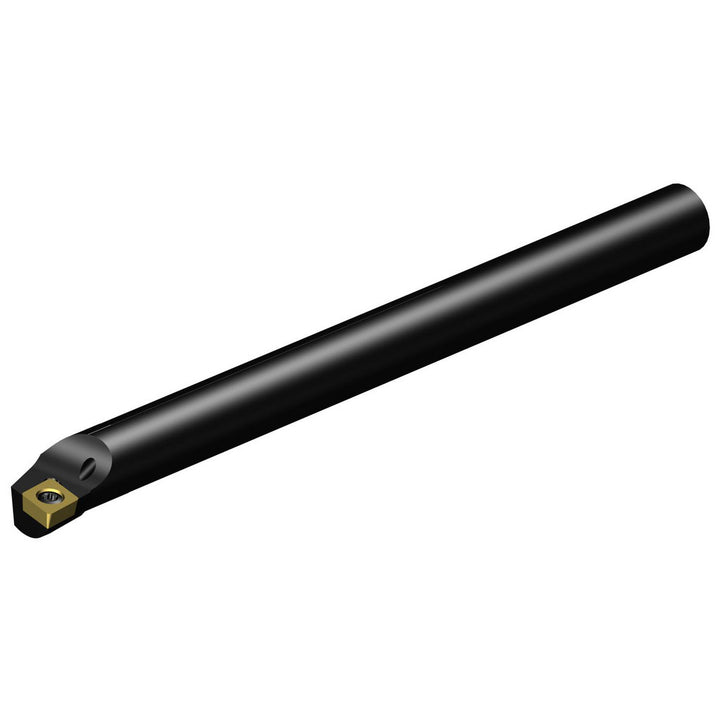

Indexable Boring - Sandvik Coromant 5853222
MFR# 5853222Cat# E10R-SCLCR 3-RSeries CoroTurn 107
$847.84List $900.72
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5853222 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge8.0000
Center to cutting edge0.4060
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityCCMT 32.52
Insert holding methodScrew Clamping
Insert inscribed circle in3/8
Insert thickness in5/32
Lead angle0.00
Manufacturers catalog numberE10R-SCLCR 3-R
Minimum bore diameter0.7717
Minimum bore diameter using diamond insert cartridge0.7717
Minimum bore diameter using triangle insert cartridge0.7717
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in5/8
Number of inserts used on toolholder1
Overall length in8
RakeNeutral
Rake angle0.00
Shank diameter in5/8
Toolholder styleE-SCLC
Tool materialSolid Carbide
