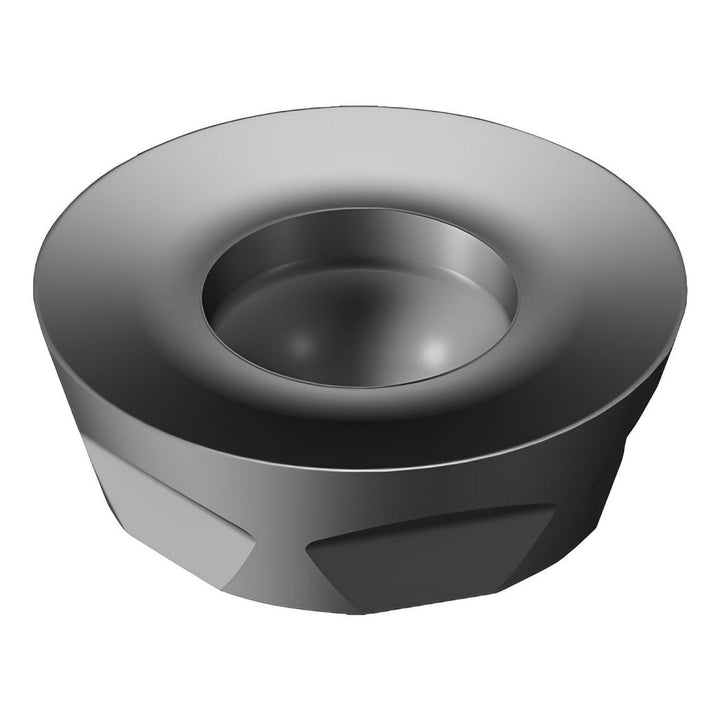

R300-0828E-PL S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853424

Sandvik Coromant

R300-0828E-PL S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853424

MFR# 5853424ISO/ANSI# R300-0828E-PL S30TCat# R300-0828E-PL S30TSeries R300

$16.69List $21.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeS30T
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5853424 is a R300-0828E-PL S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeR300-0828E-PL S30T
Chip breakerPL
Coating finishTiAlN
Coating processPVD
Convex radius0.1575
Corner radius0.1575
Cutter series compatibilityA10K; A12M; A16K; A20M; R300
Cutting edge styleRounded
Hole diameter0.1102
Included angle degree360
Inscribed circle0.3150
Inscribed circle range0.3000 to 0.3500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size08
Insert size code0828
Insert styleR300
Iso codeR300-0828E-PL S30T
Length0.3150
Length range0.0000 to 0.3200
Manufacturers catalog numberR300-0828E-PL S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.1575
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/64
Thickness range0.1000 to 0.1250
Width0.3150
