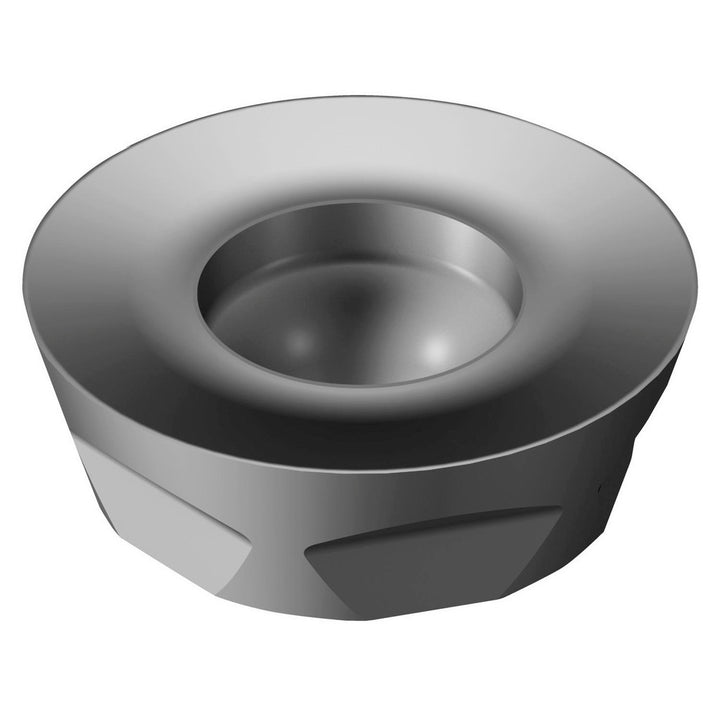

R300-1240E-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853438

Sandvik Coromant

R300-1240E-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853438

MFR# 5853438ISO/ANSI# R300-1240E-PM S30TCat# R300-1240E-PM S30TSeries R300

$20.89List $26.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeS30T
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5853438 is a R300-1240E-PM S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeR300-1240E-PM S30T
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Convex radius0.2362
Corner radius0.2362
Cutter series compatibilityR300
Cutting edge styleRounded
Hole diameter0.1614
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1240
Insert styleR300
Iso codeR300-1240E-PM S30T
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberR300-1240E-PM S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.1181
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.4724
