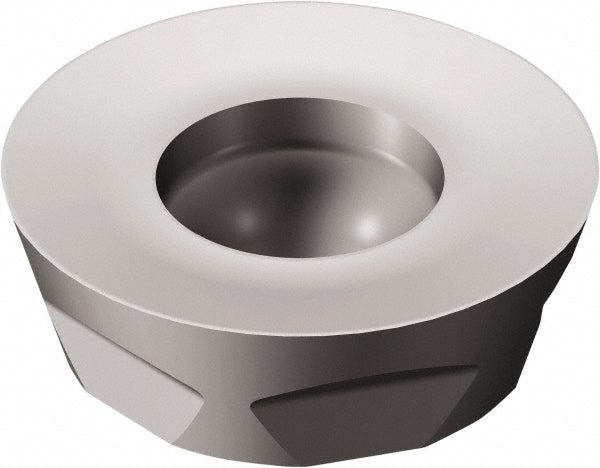

R300-1648M-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853452

Sandvik Coromant

R300-1648M-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853452

MFR# 5853452ISO/ANSI# R300-1648M-PM S30TCat# R300-1648M-PM S30TSeries R300

$23.66List $30.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeS30T
MaterialSolid Carbide
CoatingTiAlN

Description

The Sandvik Coromant 5853452 is a R300-1648M-PM S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeR300-1648M-PM S30T
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Convex radius0.3150
Corner radius0.3150
Cutter series compatibilityR300
Cutting edge styleRounded
Hole diameter0.2244
Included angle degree360
Inscribed circle0.6299
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size16
Insert size code1648
Insert styleR300
Iso codeR300-1648M-PM S30T
Length0.6299
Length range0.6000 to 0.6500
Manufacturers catalog numberR300-1648M-PM S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.1575
Multi use toolYes
Number of cutting edges6
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.6299
