R390-11 T3 31M-PM S40T Solid Carbide Insert, Grade S40T, TiCrN - Sandvik Coromant 5853490

Sandvik Coromant

R390-11 T3 31M-PM S40T Solid Carbide Insert, Grade S40T, TiCrN - Sandvik Coromant 5853490

MFR# 5853490ISO/ANSI# R390-11 T3 31M-PM S40TCat# R390-11 T3 31M-PM S40TSeries R390

$29.58List $37.28 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeS40T
MaterialSolid Carbide
CoatingTiCrN

Description

The Sandvik Coromant 5853490 is a R390-11 T3 31M-PM S40T solid carbide indexable insert, grade S40T, TiCrN coated. Suited for stainless steel, superalloys & titanium.

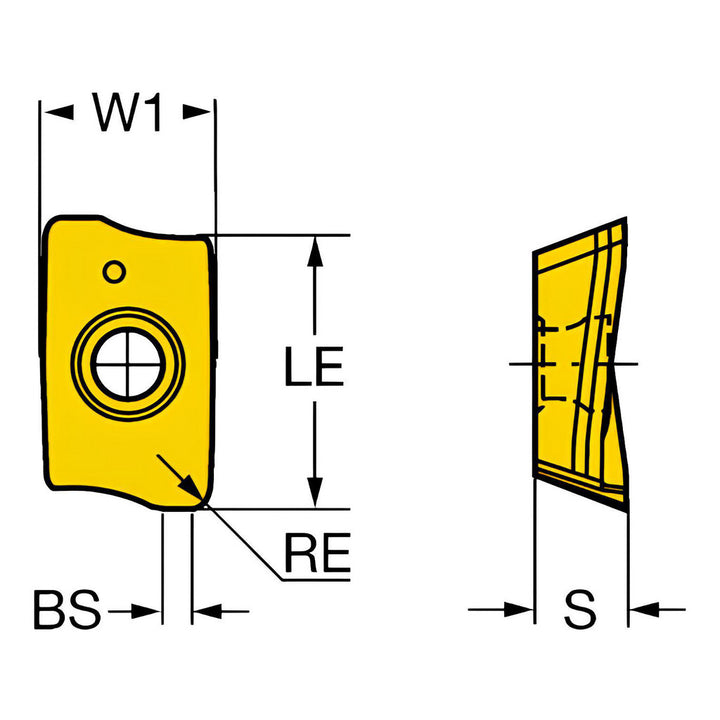

Specifications

Ansi codeR390-11 T3 31M-PM S40T
Chip breakerPM
Coating finishTiCrN
Coating processCVD
Corner radius0.1220
Cutter series compatibilityM-32; R390
Cutting edge styleCorner Rounded
Hole diameter0.1102
Included angle degree90
Inscribed circle0.2677
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T331
Insert styleR390
Iso codeR390-11 T3 31M-PM S40T
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberR390-11 T3 31M-PM S40T
Manufacturer gradeS40T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM40; S35
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle25
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1413
Thickness range0.1250 to 0.1500
Width0.2677
