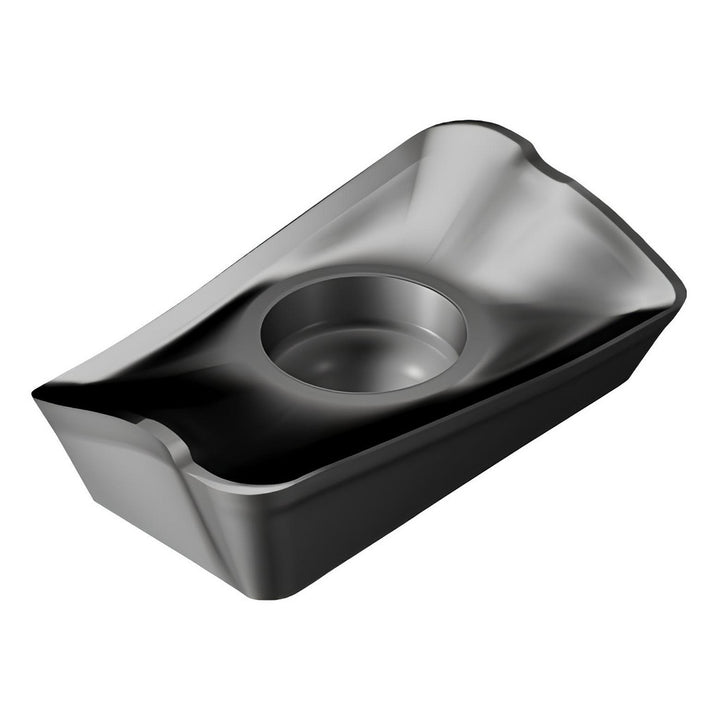

R390-17 04 08M-PL S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853493
MFR# 5853493ISO/ANSI# R390-17 04 08M-PL S30TCat# R390-17 04 08M-PL S30TSeries R390
$28.84List $36.99
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeS30T
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5853493 is a R390-17 04 08M-PL S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeR390-17 04 08M-PL S30T
Chip breakerPL
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR390
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size17
Insert size code170408
Insert styleR390
Iso codeR390-17 04 08M-PL S30T
Length0.6181
Length range0.6000 to 0.6500
Manufacturers catalog numberR390-17 04 08M-PL S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.6299
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle23
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3780
