Sandvik Coromant

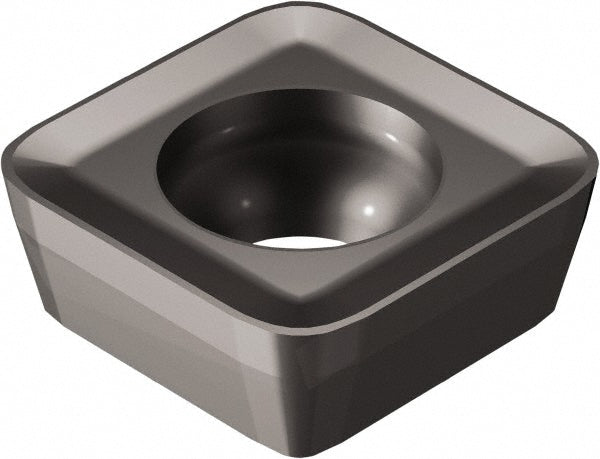

R210-09 04 14E-PM S30T Solid Carbide Insert, Grade S30T, TiAlN - Sandvik Coromant 5853538
MFR# 5853538ISO/ANSI# R210-09 04 14E-PM S30TCat# R210-09 04 14E-PM S30TSeries R210
$29.64List $37.35
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeS30T
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5853538 is a R210-09 04 14E-PM S30T solid carbide indexable insert, grade S30T, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeR210-09 04 14E-PM S30T
Chip breakerPM
Coating finishTiAlN
Coating processPVD
Corner radius0.0551
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.1654
Included angle degree90
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090414
Insert styleR210
Iso codeR210-09 04 14E-PM S30T
Length0.3740
Length range0.3200 to 0.4000
Manufacturers catalog numberR210-09 04 14E-PM S30T
Manufacturer gradeS30T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM25; S25
Maximum depth of cut0.0472
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle10
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3740
