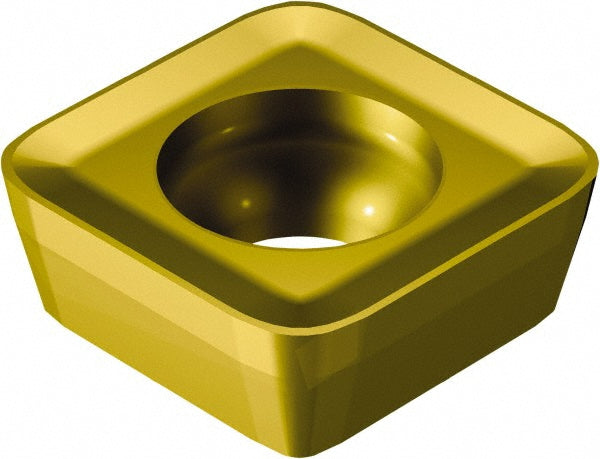

R210-09 04 14E-PM S40T Solid Carbide Insert, Grade S40T, TiCrN - Sandvik Coromant 5853542

Sandvik Coromant

R210-09 04 14E-PM S40T Solid Carbide Insert, Grade S40T, TiCrN - Sandvik Coromant 5853542

MFR# 5853542ISO/ANSI# R210-09 04 14E-PM S40TCat# R210-09 04 14E-PM S40TSeries R210

$24.33List $31.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeS40T
MaterialSolid Carbide
CoatingTiCrN

Description

The Sandvik Coromant 5853542 is a R210-09 04 14E-PM S40T solid carbide indexable insert, grade S40T, TiCrN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeR210-09 04 14E-PM S40T
Chip breakerPM
Coating finishTiCrN
Coating processCVD
Corner radius0.0551
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.1654
Included angle degree90
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090414
Insert styleR210
Iso codeR210-09 04 14E-PM S40T
Length0.3740
Length range0.3200 to 0.4000
Manufacturers catalog numberR210-09 04 14E-PM S40T
Manufacturer gradeS40T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM40; S35
Maximum depth of cut0.0472
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle10
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3740
