Sandvik Coromant

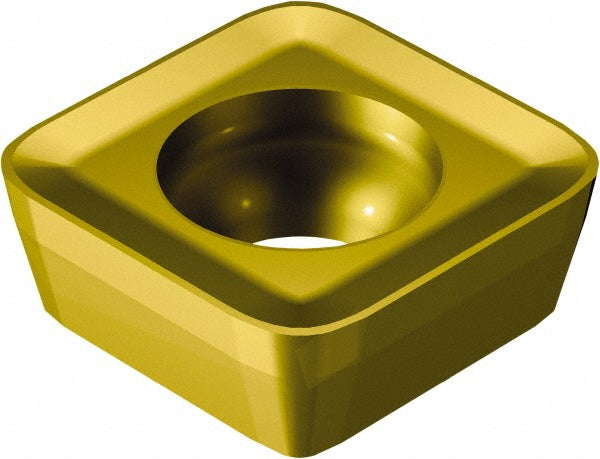

R210-14 05 14E-PM S40T Solid Carbide Insert, Grade S40T, TiCrN - Sandvik Coromant 5853544
MFR# 5853544ISO/ANSI# R210-14 05 14E-PM S40TCat# R210-14 05 14E-PM S40TSeries R210
$38.64List $48.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeS40T
MaterialSolid Carbide
CoatingTiCrN
Description
The Sandvik Coromant 5853544 is a R210-14 05 14E-PM S40T solid carbide indexable insert, grade S40T, TiCrN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeR210-14 05 14E-PM S40T
Chip breakerPM
Coating finishTiCrN
Coating processCVD
Corner radius0.0551
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.2244
Included angle degree90
Inscribed circle0.5748
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140514
Insert styleR210
Iso codeR210-14 05 14E-PM S40T
Length0.5748
Length range0.5000 to 0.6000
Manufacturers catalog numberR210-14 05 14E-PM S40T
Manufacturer gradeS40T
Material applicationStainless Steel; Superalloys & Titanium
Material gradeM40; S35
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle10
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2071
Thickness range0.2000 to 0.2200
Width0.5748
