490R-140408M-PM 3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5854743

Sandvik Coromant

490R-140408M-PM 3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5854743

MFR# 5854743ISO/ANSI# 490R-140408M-PM 3040Cat# 490R-140408M-PM 3040Series 490

$29.18List $37.42 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade3040
MaterialSolid Carbide
CoatingTiCN

Description

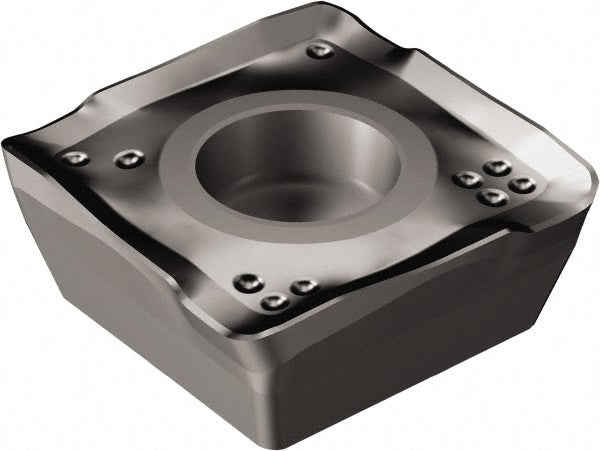

The Sandvik Coromant 5854743 is a 490R-140408M-PM 3040 solid carbide indexable insert, grade 3040, TiCN coated. Suited for steel, cast iron, hard material.

Specifications

Ansi code490R-140408M-PM 3040
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibility490
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5433
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140408
Insert style490
Iso code490R-140408M-PM 3040
Length0.5433
Length range0.5000 to 0.6000
Manufacturers catalog number490R-140408M-PM 3040
Manufacturer grade3040
Material applicationSteel; Cast Iron; Hard Material
Material gradeP20; K30; H25
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Hard Material
RakePositive
Rake angle23
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1535
Thickness range0.1500 to 0.1750
Width0.5433
