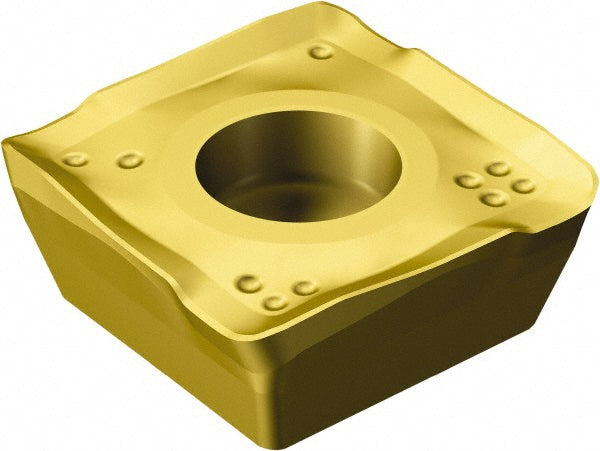

490R-140408E-ML 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5854762
MFR# 5854762ISO/ANSI# 490R-140408E-ML 2040Cat# 490R-140408E-ML 2040Series 490
$34.54List $44.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
Grade2040
MaterialSolid Carbide
CoatingTiCrN
Description
The Sandvik Coromant 5854762 is a 490R-140408E-ML 2040 solid carbide indexable insert, grade 2040, TiCrN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi code490R-140408E-ML 2040
Chip breakerML
Coating finishTiCrN
Coating processCVD
Corner radius in1/32
Cutter series compatibility490
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5433
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140408
Insert style490
Iso code490R-140408E-ML 2040
Length0.5433
Length range0.5000 to 0.6000
Manufacturers catalog number490R-140408E-ML 2040
Manufacturer grade2040
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M40; S30
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle26
Relief angle16.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1535
Thickness range0.1500 to 0.1750
Width0.5433
