Sandvik Coromant

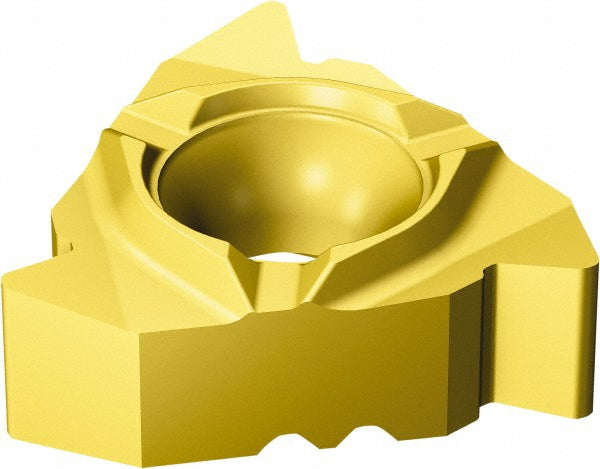

3/8" IC Solid Carbide Insert, Grade 1135, TiCrAlN/TiN - Sandvik Coromant 5857612
MFR# 5857612Cat# 266RL-16UN01A100M 1135Series CoroThread 266
$47.31List $59.62
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade1135
MaterialSolid Carbide
CoatingTiCrAlN/TiN
Description
The Sandvik Coromant 5857612 is a solid carbide indexable insert, grade 1135, TiCrAlN/TiN coated.
Specifications
ChipbreakerA
Coating finishTiCrAlN/TiN
Coating processPVD
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style266
Manufacturers catalog number266RL-16UN01A100M 1135
Manufacturer grade1135
Number of teeth per side1
Thickness in5/32
Threads per inch10
Thread standardUN
Thread typeInternal
