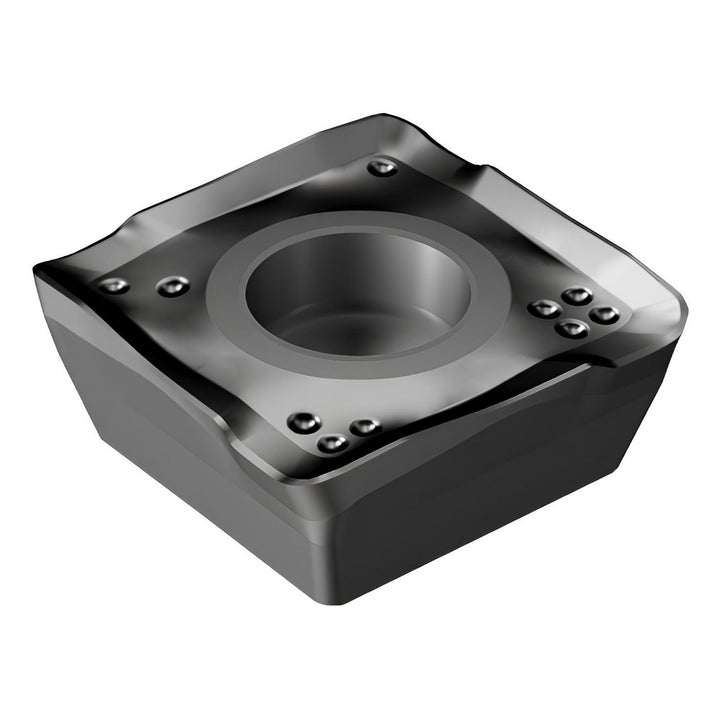

490R-140416E-MM 1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 5888494
MFR# 5888494ISO/ANSI# 490R-140416E-MM 1040Cat# 490R-140416E-MM 1040Series 490
$32.99List $41.58
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
Grade1040
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5888494 is a 490R-140416E-MM 1040 solid carbide indexable insert, grade 1040, TiAlN coated. Suited for steel, stainless steel.
Specifications
Ansi code490R-140416E-MM 1040
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius0.0630
Cutter series compatibility490
Cutting edge styleCorner Rounded
Hole diameter0.1614
Included angle degree90
Inscribed circle0.5433
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140416
Insert style490
Iso code490R-140416E-MM 1040
Length0.5433
Length range0.5000 to 0.6000
Manufacturers catalog number490R-140416E-MM 1040
Manufacturer grade1040
Material applicationSteel; Stainless Steel
Material gradeM30
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle26
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1535
Thickness range0.1500 to 0.1750
Width0.5433
