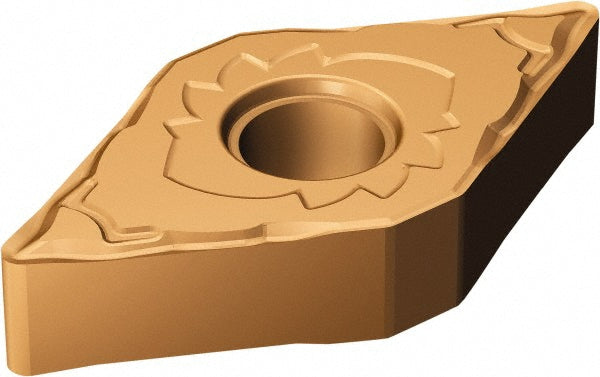

DNMG 15 04 04-SF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5891394

Sandvik Coromant

DNMG 15 04 04-SF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5891394

MFR# 5891394ISO/ANSI# DNMG150404Series T-Max P

$24.59List $31.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
Grade1125
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5891394 is a DNMG 15 04 04-SF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeDNMG431
Ansi size code431
Chip breakerSF
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.2032
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 04-SF 1125
Iso insert codeDNMG150404
Iso size code150404
Length range0.6000 - 0.6500
Manufacturers catalog number5891394
Manufacturer grade1125
Maximum depth of cut0.2520
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
