Sandvik Coromant

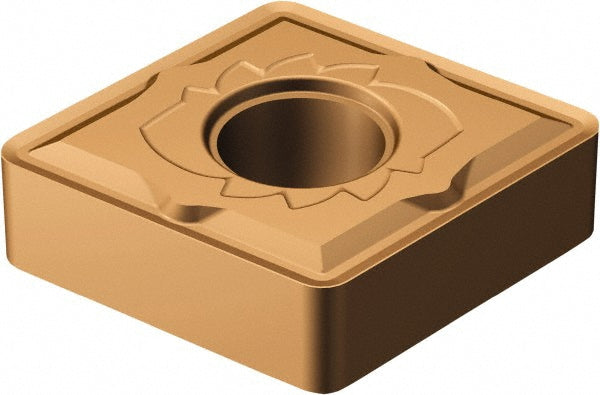

CNMG 16 06 12-SM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5906810
MFR# 5906810ISO/ANSI# CNMG 16 06 12-SM 1125Series T-Max P
$30.74List $39.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5906810 is a CNMG 16 06 12-SM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4173
Insert materialCarbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 12-SM 1125
Length range0.4000 - 0.5000
Manufacturer grade1125
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
