Sandvik Coromant

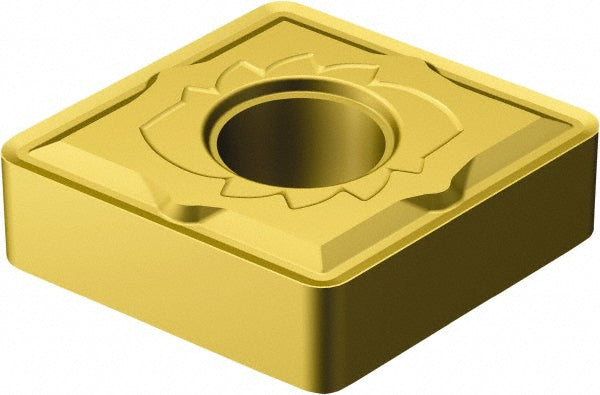

CNMG190616-SM S05F Carbide Insert, Grade S05F, TiCN - Sandvik Coromant 5906821
MFR# 5906821ISO/ANSI# CNMG190616-SM S05F
$44.96List $57.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeS05F
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5906821 is a CNMG190616-SM S05F carbide indexable insert, grade S05F, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Corner radius in1/16
Hole diameter0.3120
Included angle80
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeDiamond
Insert size code644
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190616-SM S05F
Length range0.5000 - 0.6000
Manufacturer gradeS05F
Relief angle0
Tolerance codeM
