Sandvik Coromant
SNMG190616-SM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5906834
MFR# 5906834ISO/ANSI# SNMG190616-SM H13ASeries T-Max P
$35.24List $44.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
GradeH13A
MaterialCarbide
Description

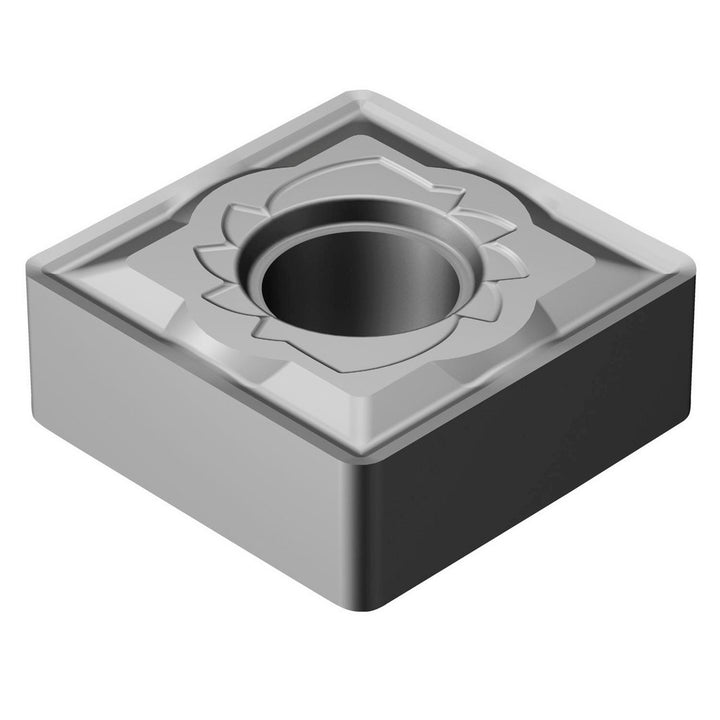

The Sandvik Coromant 5906834 is a SNMG190616-SM H13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeN
Corner radius in1/16
Hole diameter0.3120
Included angle90
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code644
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG190616-SM H13A
Length range0.5000 - 0.6000
Manufacturer gradeH13A
Number of cutting edges8
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
