Sandvik Coromant
3/8" IC Solid Carbide Insert, Grade 1135, TiCrAlN/TiN - Sandvik Coromant 5907045
MFR# 5907045Cat# 266RL-16VM01C001M 1135Series CoroThread 266
$38.83List $49.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
Grade1135
MaterialSolid Carbide
CoatingTiCrAlN/TiN
Description

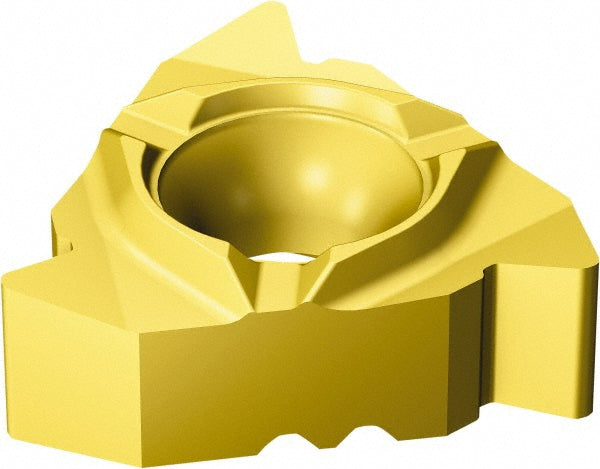

The Sandvik Coromant 5907045 is a solid carbide indexable insert, grade 1135, TiCrAlN/TiN coated.
Specifications
ChipbreakerC
Coating finishTiCrAlN/TiN
Coating processPVD
Corner radius0.0024
Hole diameter0.1732
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert style266
Manufacturers catalog number266RL-16VM01C001M 1135
Manufacturer grade1135
Number of teeth per side1
Pitch (mm)1.00-2.00
Thickness in5/32
Threads per inch12-24
Thread standard60 Deg V
Thread typeInternal
