Sandvik Coromant

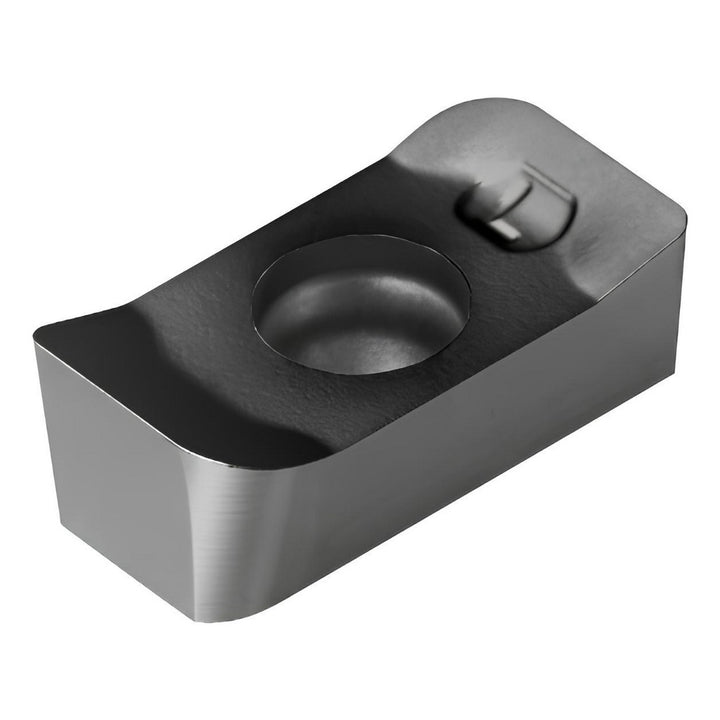

R331.1A-08 45 15H-WL1040 Solid Carbide Insert, Grade 1040, TiAlN - Sandvik Coromant 5907135
MFR# 5907135ISO/ANSI# R331.1A-08 45 15H-WL1040Cat# R331.1A-08 45 15H-WL1040Series R331.1A
$25.76List $33.04
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
Grade1040
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5907135 is a R331.1A-08 45 15H-WL1040 solid carbide indexable insert, grade 1040, TiAlN coated. Suited for steel, stainless steel.
Specifications
Ansi codeR331.1A-08 45 15H-WL1040
Chip breakerWL
Coating finishTiAlN
Coating processPVD
Corner radius0.0598
Cutter series compatibilityN331.32
Cutting edge styleCorner Rounded
Hole diameter0.1417
Included angle degree90
Inscribed circle0.3150
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size08
Insert size code084515
Insert styleR331.1A
Iso codeR331.1A-08 45 15H-WL1040
Length0.3031
Length range0.0000 to 0.3200
Manufacturers catalog numberR331.1A-08 45 15H-WL1040
Manufacturer grade1040
Material applicationSteel; Stainless Steel
Material gradeM30
Maximum depth of cut0.3031
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3740
