Sandvik Coromant

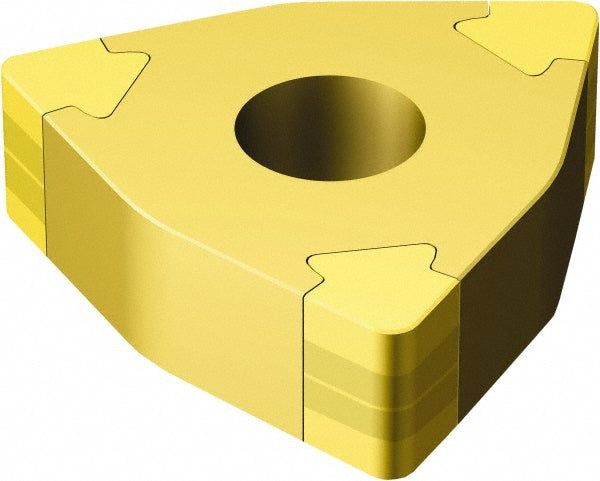

WNGA080408T01020B 7525 Carbide Insert, Grade 7525, TiN - Sandvik Coromant 5908130
MFR# 5908130ISO/ANSI# WNGA080408T01020B 7525
$229.89List $294.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
Grade7525
MaterialCarbide
CoatingTiN
Description
The Sandvik Coromant 5908130 is a WNGA080408T01020B 7525 carbide indexable insert, grade 7525, TiN coated.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.1181
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNGA
Insert thickness in3/16
Iso codeWNGA080408T01020B 7525
Length range0.0000 - 0.3000
Manufacturer grade7525
Relief angle0
Tolerance codeG
