Sandvik Coromant

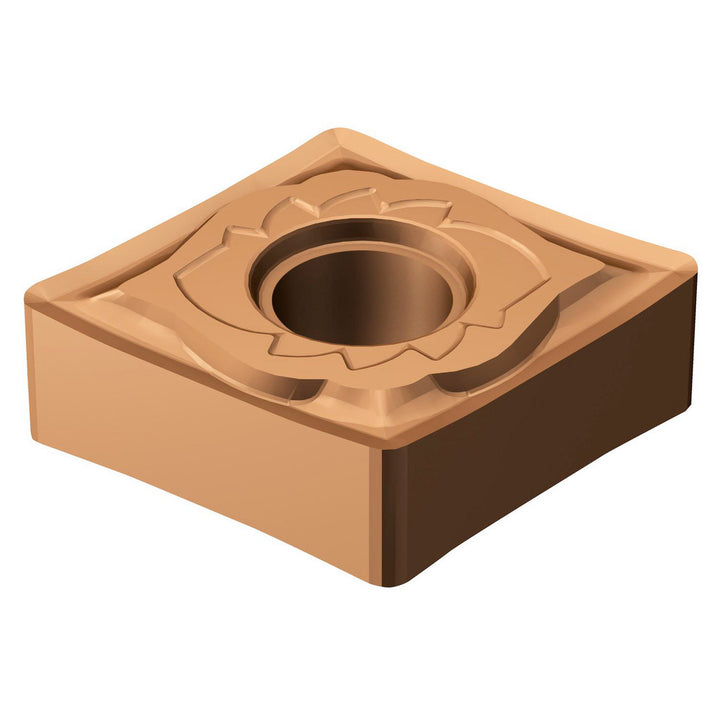

CNGG120408-SGF 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5908961
MFR# 5908961ISO/ANSI# CNGG120408-SGF 1115Series T-Max P
$27.45List $34.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5908961 is a CNGG120408-SGF 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSGF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3346
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120408-SGF 1115
Length range0.3000 - 0.4000
Manufacturer grade1115
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
