Sandvik Coromant

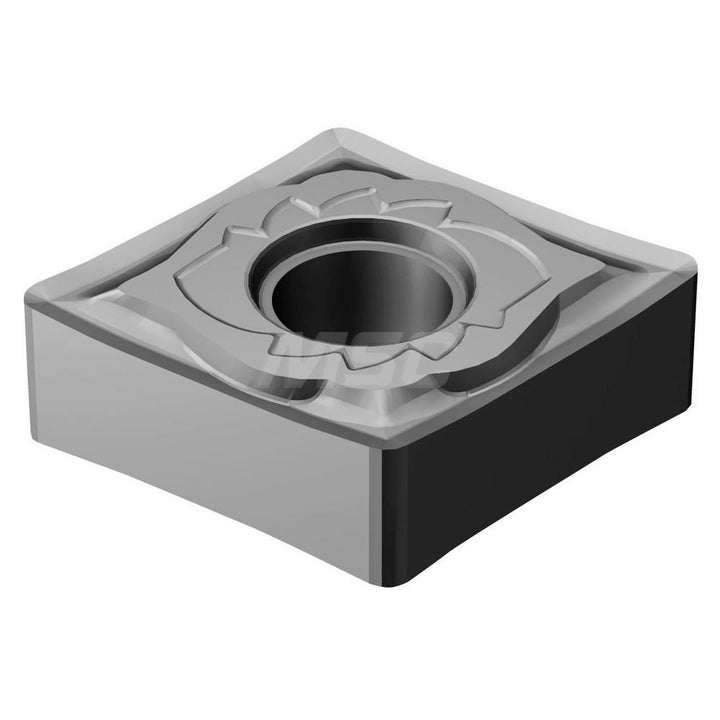

CNGG120408-SGF H13A Carbide Insert, Grade H13A - Sandvik Coromant 5908964
MFR# 5908964ISO/ANSI# CNGG120408-SGF H13ASeries T-Max P
$16.41List $21.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5908964 is a CNGG120408-SGF H13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Chip breakerSGF
Clearance codeN
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3346
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120408-SGF H13A
Length range0.3000 - 0.4000
Manufacturer gradeH13A
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
