Sandvik Coromant

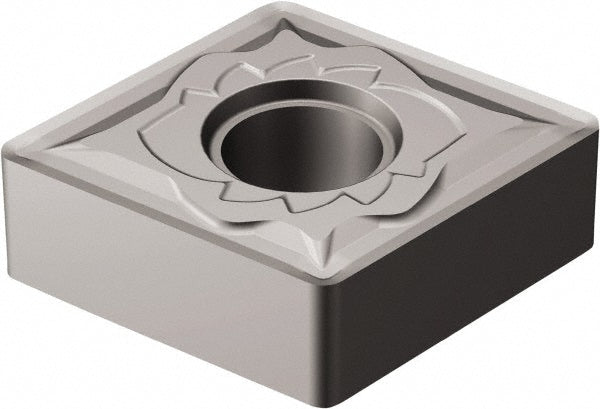

CNMG190616-SMR H13A Carbide Insert, Grade H13A - Sandvik Coromant 5908994
MFR# 5908994ISO/ANSI# CNMG190616-SMR H13A
$31.24List $40.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5908994 is a CNMG190616-SMR H13A carbide indexable insert, grade H13A.
Specifications
Chip breakerG
Clearance codeN
Corner radius in1/16
Hole diameter0.3120
Included angle80
Inscribed circle in3/4
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeDiamond
Insert size code644
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190616-SMR H13A
Length range0.5000 - 0.6000
Manufacturer gradeH13A
Relief angle0
Tolerance codeM
