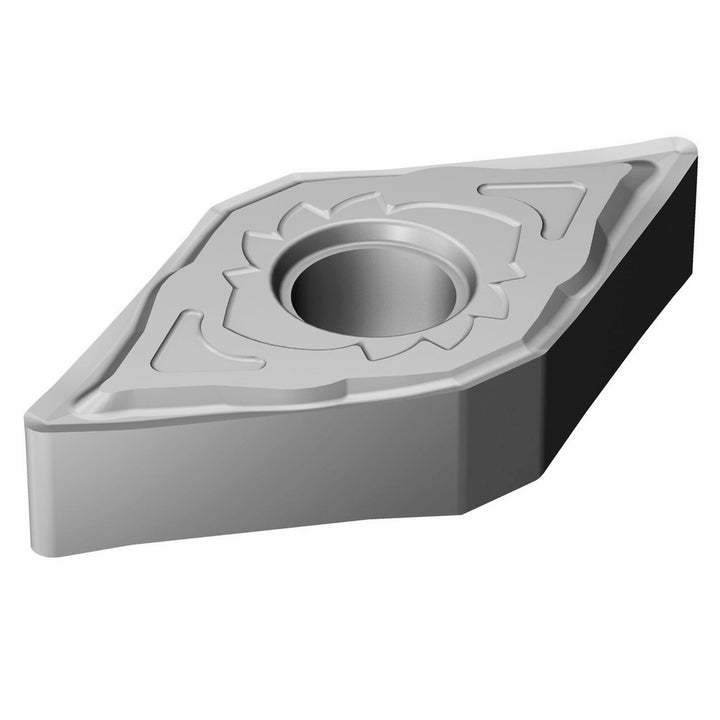

DNGG150404SGFH13A Carbide Insert, Grade H13A - Sandvik Coromant 5908999
MFR# 5908999ISO/ANSI# DNGG150404SGFH13ASeries T-Max P
$20.67List $26.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5908999 is a DNGG150404SGFH13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Chip breakerSGF
Clearance codeN
Corner radius in1/64
Hole diameter0.2032
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG150404SGFH13A
Length range0.6000 - 0.6500
Manufacturers catalog number5908999
Manufacturer gradeH13A
Maximum depth of cut0.2520
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
